Engineering Marvel

Vehicle with roof monitor with capacity of 15000 liters, which is designed in accordance with the new generation industrial zones of Volkan, is a prominent engineering marvel.

LIGHT DUTY INDUSTRIAL MEDIUM DUTY INDUSTRIAL HEAVY DUTY INDUSTRIAL(FOAM) INDUSTRIAL WITH TELESCOPIC BOOM
AXLE CONFIGURATION 4X2 / 4X4 6X2 / 6X4 / 8X4 6X4 / 8X4 6X4 / 8X4
BODY ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
WATER TANK UP TO 5000 LT UP TO 12000 LT UP TO 4000 LT UP TO 4000 LT
FOAM TANK UP TO 1000 LT UP TO 4000 LT UP TO 9000 LT UP TO 2000 LT
DCP 250 KG 250 KG / 500 KG 250 KG / 500 KG 250 KG / 500 KG
WATER & FOAM TANK MATERIAL SS 316 PP / GRP SS 316 PP / GRP SS 316 PP / GRP SS 316 PP / GRP
FIRE PUMP UP TO 4000 LPM 6000-10000 LPM 6000-10000 LPM 4000-9000 LPM
HOSE REEL ELECTRICAL 60 M ELECTRICAL 30 M- 60 M ELECTRICAL 30 M- 60 M ELECTRICAL 30 M- 60 M
ROOF MONITOR UP TO 4000 LPM 6000-15000 LPM 6000-15000 LPM 6000 LPM
BUMPER MONITOR UP TO 2000 LPM UP TO 3000 LPM UP TO 3000 LPM UP TO 2000 LPM
BOOM / HRET 20 M WORKING HEIGHT(OPTIONAL) 20 M WORKING HEIGHT(OPTIONAL) 20 M WORKING HEIGHT(OPTIONAL) 20 M WORKING HEIGHT
FOAM PROPORTIONING SYSTEM AUTOMATIC ATP AUTOMATIC ATP AUTOMATIC ATP AUTOMATIC ATP
CAFS STANDARD OPTIONAL OPTIONAL OPTIONAL
CO2 UP TO 50 KG UP TO 240 KG UP TO 240 KG UP TO 120 KG
GROSS VEHICLE WEIGHT UP TO 20 T UP TO 33 T UP T0 33 T UP TO 41 T

Technical Specifications

  • 7000 LT Water Tank & 2000 LT Foam Tank
  • Fire Pump: VFPN 600
  • 20 M High Reach Extendable Turret With Piercing Nozzle
  • Automatic Foam Proportioning System
  • 2000 LPM Bumper Turret – 6000 LPM Turret Nozzle
  • 30 M Rapid Intervention Hose Reel
  • 500 KG DCP Capacity
  • Aluminum Body and PP Liquid Agent Tanks

Technical Specifications

  • 9000 LT Water Tank Capacity
  • 3000 LT Foam Tank Capacity
  • VFPN-1000 Fire Pump & Advanced Pump Control Unit
  • 15.000 LPM Roof Monitor
  • WG 2000SE Bumper Monitor
  • 30 M Electrical Hose Reel
  • 250 KG DCP Capacity
  • Aluminum Body and GRP Liquid Agent Tanks

Technical Specifications

  • 4000 LT Water Tank Capacity
  • 6500 LT Foam Tank Capacity
  • VFPN-1000 Fire Pump & Advanced Pump Control Unit
  • 15.000 LPM Roof Monitor
  • 60 M Electrical Hose Reel
  • 500 KG DCP Capacity
  • 240 KG CO2
  • Aluminum Body and GRP Liquid Agent Tanks
  • 2000 LPM Bumper Monitor

 Technical Specifications

  • Capacity that will carry with all of the equipment including 5+1 breathing apparatus,
  • Integrated control console which is used to follow and control fire systems of cab internal, capacities of water and foam tanks, lightening of vehicle circle,
  • 425 kW (580 horse power) V8 engine,
  • Foam tank with capacity of 4000 lt. water and 7000 lt. foam,
  • At least 10000 liters of water processing in a minute and at least 1700 liters of foam processing rate in a minute with Poseidon WFPS 1000 water-foam processing system, which is completely designed by Volkan,
  • Capacity of preparation of foam solution up to 10% from all outputs including foam pump roof monitor and emergency response reels,
  • Foam proportioning from roof monitors and emergency response reels separately with Foam Proportioning System,
  • Fire exits in 10 pieces totally as 4 each of 2 ½” on left and right and 1 each of 6” and 1 piece of 6” in the rear side of the vehicle
  • 1 each of emergency response reel in 30 meters in right and left sides of pump module,
  • Roof monitor with capacity of 15000 Ipm designed by Volkan,
  • Monitor controlled electrohydraulically, which has vertical movement between 0° and 75° and ±180° horizontal rotation
  • Monitor nozzle used in intermediate positions, whose monitor jet, mist positions are predefined,
  • Monitor with automatic flow rate which can make proportioning up to 4% and which can make foam absorption from external source,
  • Dry chemical powder unit with capacity of 500 lt. positioned on front module,
  • Carbon dioxide unit with capacity of 240 kg with 30 m. intervention reel,
  • 30 m. intervention reel,
  • Hose compartments that will carry 20 pieces of 2 ½” fire hoses in 30 meters, 10 pieces of 6” fire hoses in 10 meters, 4 each of 6” hard and soft suction hose,
  • 4 pieces of foam pipes and 4 pieces of movable monitor with various equipment to be used on extinguishing fires at industrial zones,
  • Lightening tower in power of 350 Watt that can rise for 3 meters from the roof of the vehicle, that can scan an area in 360 degrees vertically up to 90°, that can change the focus from -5° to -35°.

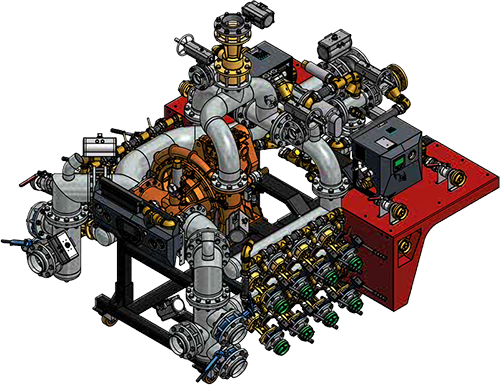

POSEIDON SYSTEM TECHNICAL FEATURES
  • VOLKAN V FPN 1000 BRONZE CENTRIFUGAL WATER PUMP: 10 BAR 10000LMP
  • FOAM PUMP: 1700 LPM at 16 BAR
  • Up to 16X 2.5.. FIRE OUTLET [8 ON THE RIGHT, 8 ON THE LEFTi
  • COMPATIBLE TO NFPA 1901 ON DEMAND BALANCED PRESSURE SYSTEM
  • ADJUSTABLE FOAM PROPORTIONING [%0 – %8] AT EACH INDIVIDUAL FIRE OUTLET
  • 6X 6″ PRESSURE SOURCE INLET, 1X 6″ DIRECT TURRET INLET
  • TWIN VOLKAN CAFS V3 SYSTEM

WG 15000 EN TECHNICAL FEATURES



  • Drive System: Electro-Hydraulic & Manuel Control
  • Material: 316L Grade Stainless Steel
  • Horizontal Working Angle: -180 to +180
  • Vertical Working Angle: -45 to +90
  • Nozzle: Constant Pressure Variable Flowrate Control / Jet-Fog Nozzle / DCP
  • Options: Foam Expansion Pipe with Deflector / Direct Foam Suction 2.5” Inlet / 12 or 24 VDC Spotlight
